| 名稱 |

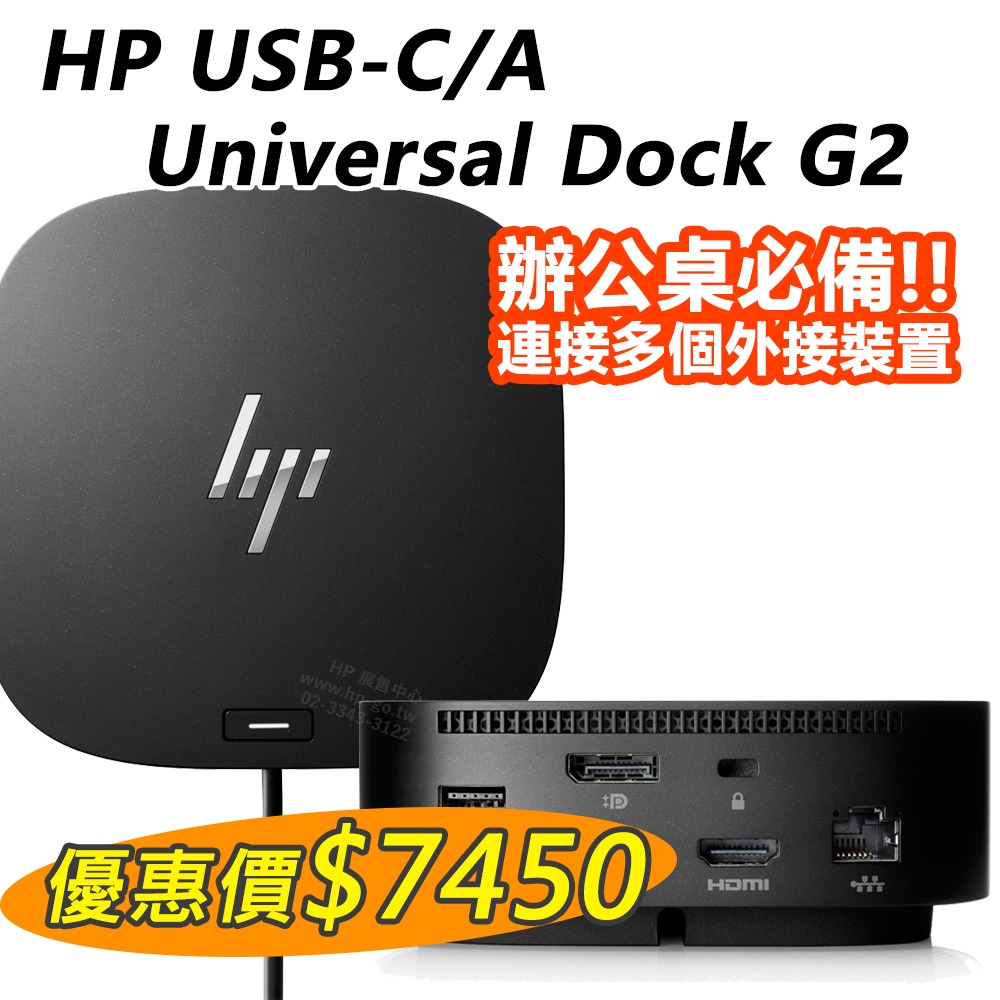

HP USB-C/A Universal Dock G2 |
| 料號 |
5TW13AA |
| 頂部 |
帶有 LED 指示燈的電源按鈕，用於為主機系統開機或喚醒主機系統 |
| 前端 |
1* USB-C 3.2 Gen 1 port with data and power out (15W)
1* USB-C 線，用於連接主機 (線長1m) |
| 側面 |
2* USB-A 3.2 Gen 1 charging ports
1* Combo audio jack |
| 後端 |
2* USB-A 3.2 Gen 1 charging ports
2* DisplayPort 1.2 ports
1* HDMI 2.0 port
1* RJ45 port (10/100/1000)
1* 安全鎖孔 |
| 支援外接顯示器 |
最大支援3台螢幕 (實際使用會因不同效能配置而異)
3x 4k @ 60 Hz(For hosts that support DisplayPort 1.4 with Display Stream Compression)
2x 4K @ 60 Hz(For hosts that support DisplayPort 1.3/1.4)
1x 4K @ 60 Hz(For hosts support DisplayPort 1.2) |
| 系統電源 Power to system |
Up to 100W (非HP機器up to 75W) |
| 供電 (PD) 配置資訊 |
5V, 9V, 10V, 12V, 15V, 20V all at 5A MAX |
| 管理功能 |
eTag
Disconnected Firmware updates
PXE Boot
Wake on LAN (from the Off, Sleep or Hibernation States)
MAC address pass-through (from the On, Off, Sleep or Hibernation States)
WLAN-LAN Switching |
| 支援作業系統 |
Windows 11 21H2, Windows 11 22H2, Windows 10 RS4, Windows 10 RS5, Windows 10 19H1, Windows 10 19H2, Windows 10 20H1, Windows 10 20H2, Windows 10 21H1, Windows 10 21H2, Windows 10 22H2, ChromeOS v92.0.4515.157, ChromeOS M92 (HP notebooks only), ChromeOS M93 (HP notebooks only), ThinPro 8.0, Windows 10 IoT Enterprise LTSC 2021, macOS Monterey v12.0, macOS Big Sur 11.5.2 |
| 尺寸 |
12.2 x 12.2 x 4.5 cm |
| 重量 |
約690 g (不含電源供應組) |
| 認證字號 |
BSMI：D3A304 |
| 保固 |
1年保固 |
| 內容物 |
HP Universal Dock G2
電源供應器 (120W變壓器+電源線)
USB-C to USB-A 轉接頭
使用文件 |
