| 商品 |

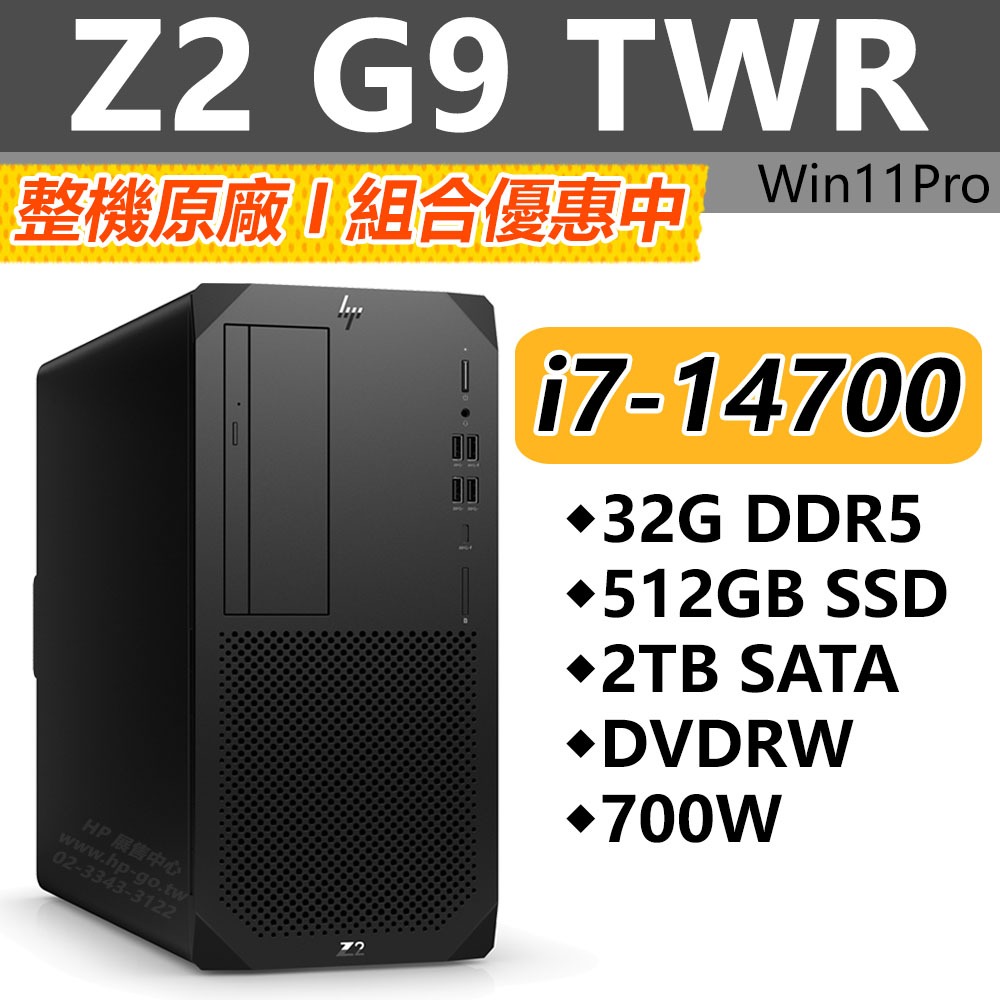

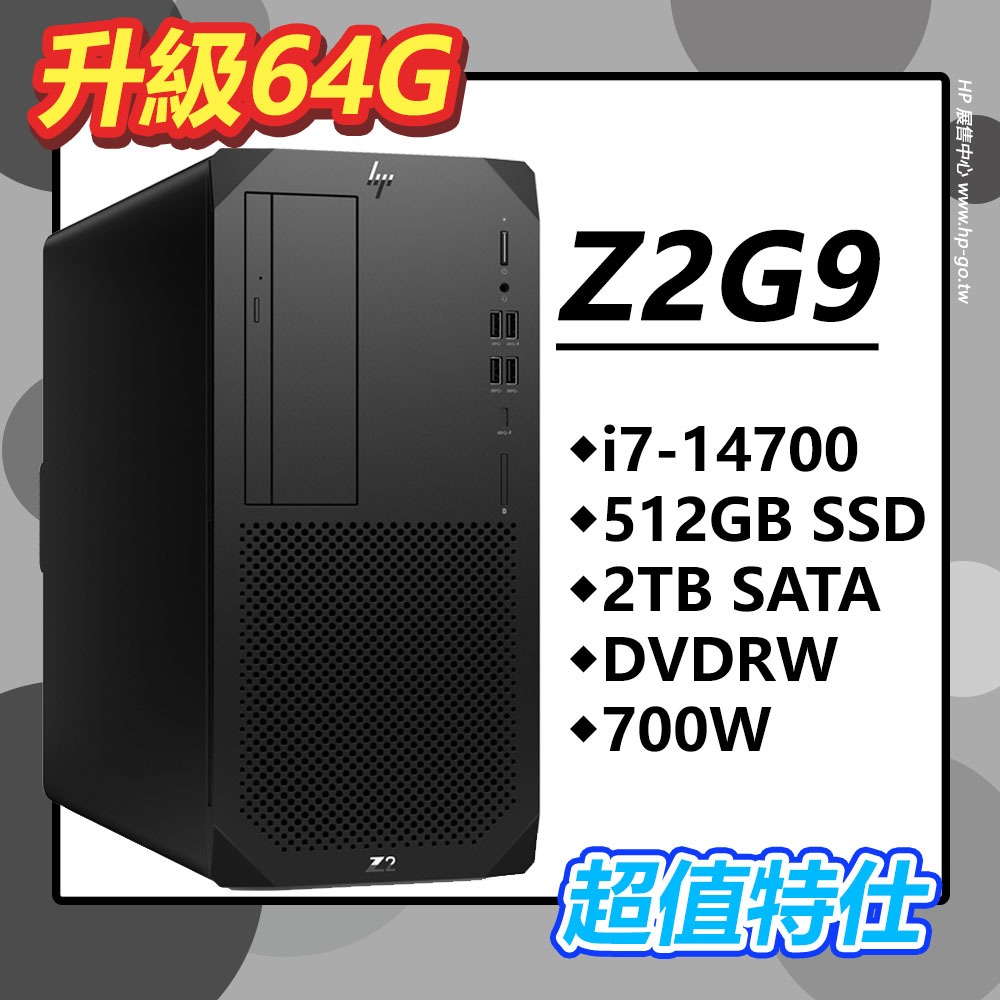

HP Z2 G9 TWR |
| 晶片組 |
Intel W680 chipset |
| 處理器 |
Intel® Core™ i7-14700
(2.1GHz P-Core base frequency, 1.5GHz E-Core base frequency, up to 5.3Ghz P-Core Max Turbo frequency, up to 4.2Ghz E-Core Max Turbo frequency,33 MB L3 cache, 8 P-cores and 12 E-cores, 28 threads) |
| 繪圖卡 |
Intel UHD Graphics 770 |
| 記憶體(內建/插槽/最大) |
32GB (8GBx4) DDR5-4800 nECC UDIMM / 4 UDIMM slots / 128GB DDR5 4800 |
| 硬碟 |
512GB SSD 2280 PCIe-4x4 M.2 NVMe TLC + 2TB SATA HDD 3.5” |
| 作業系統 |
Windows 11 Pro |
| 擴充槽 |
• PCIe Slots：
1 PCIe Gen5 x16 (x16 Connector)
1 PCIe Gen3 x1 (x4 Connector)
1 PCIe Gen3 x4 (x16 Connector)
1 PCIe Gen3 x4 (x4 Connector)
1 M.2 PCIe 3 x1 2230 (for WLAN)
3 M.2 PCIe 4 x4 2280 (for storage)
• Expansion Bays：
2 Internal 3.5" bays
1 External 5.25" bay
• SATA port：4 |
| 網路介面 |
RJ45 *1；無線網路No
送D-Link AC600 雙頻USB 無線網路卡(DWA-172) |
| 光碟機 |
HP 9.5mm Slim DVDRW |
| 輸出PORT |
Front:
4 Type-A SuperSpeed USB 10Gbps signaling rate port (1 charge port supports up to 5V/2.1A)
1 Universal audio jack
1讀卡機SD card reader 4.0
Rear:
1 Audio Line-in jack；1 Audio Line-out jack
1 RJ-45; 2 DisplayPort 1.4
2 SuperSpeed USB Type-A 10Gbps signaling rate
1 SuperSpeed USB Type-A 5Gbps signaling rate
3 Type-A 480Mbps signaling rate port |
| 電源 |
700W wide-ranging, active Power Factor Correction, 92% Efficiency |
| 支援 |
HP Tamper Lock |
| 尺寸 |
35.6 x 16.9 x 38.5 cm |
| 重量 |
6.2kg 起 (實際重量取決於配置) |
| 認證字號 |
BSMI：R3A304 |
| 鍵盤滑鼠 |
NO |
| 保固 |
3年保固 (含台灣本島到府收送) |
